Small fix for a big problem

Posted on by
1

As the title implies the fix was simple. Finding it. not so much.

If you look at the end of the keel stringer (boat is upside down in the photo) you will see I added a small block of plywood to the frame. Believe it or not, that made the boat assume a proper shape. Not exactly as I had designed it but it has some rocker in it now. I did find something else that was working against me, but it wasn’t worth the effort it would take to fix it.  Bottom line is I know what I did wrong and how to fix it.

So the frame is done as far as I can tell. It’s stiffer and while not exactly the way I designed it. I am happy with it.  Now it’s time to finish the outriggers for the sliding seat.





Frame is done and we have a problem…

Posted on by
Reply

Frame came off the strong back and I took out in the yard for the obligatory F.R.O.G. photo. (frame on the grass)  I still love that raked transom.

I took it back into the shop and placed it on the trailer just to get it out of way so I can clean up around the stands.

I noticed there was more flex in this frame but there is also more wood, so it is heavier and skinning always stiffens them somewhat so it wasn’t a big deal. Then I was on the other side of the shop, turned around and I could see the frame was hogged. No doubt about it, the bow was lower than the center of the boat. I could not  believe it! I took and string and tied it to the boat stretched it along the keel, found that the bow was 1″  lower than the center of the boat.

After a lot of double checking and measuring I still didn’t have an answer, just a couple of ideas. After removing a few lashing, forcing the boat back in shape and studying why it wanted to deform when the pressure was released I have found a couple of reason I suspect are behind this. Of course there is only one way to find out, but that is for the next post.

Still plugging along

Posted on by
Reply

Have not made much progress but I am really close to taking the frame off the strongback. Between the ankle and other things going on I just have not gotten to spend the time on this project I really wanted too. But today I finished lashing everything but the deck beams. I needed to scarf some of the cutoffs together to get the lengths I needed for the deck.

Really anxious to get it off the strongback and flipped over. It’s going to make fitting the transom much easier. Here is a couple of photos. This is a one long boat!



Insomnia was the answer!

Posted on by
1

I don’t like to brag on my work, I was raised that was not polite. I may sometimes come across as bragging and I hope not, but sometimes you are just so proud of yourself  you can’t help it. This is one of those times and I am going to openly brag a little.

I want to start attending events and displaying my boats. I need a way to display them inside a small space. The obvious answer was a display rack but the problem was finding a good design. I want it to be simple, lightweight, easy to store and haul. And of course it must be cheap. Try as I might I just could not come up with a design that meet all my demands.

So, 2 AM this morning I am tossing and turning and can’t sleep. I get up and go in my office thinking I could proof read the chapter I was working on in the new book since reading almost always makes me sleepy. Instead I got to thinking about the rack and sketching some ideas. I have done this numerous times and I  have never come up with anything good.

But suddenly it just fell in place! It was ugly but simple and it was cheap and lightweight. I could assemble and disassemble it in 2 minutes or less and I didn’t need a cordless drill or any tools at assemble it. This was exactly what I have been looking for! I had been over thinking it all this time.

After that I managed to go back to sleep.  This morning I ate breakfast, ran to the lumber yard and after 2-3 hours in the shop and I had it built.

I settled on 3 boat rack since this would keep the tallest boat at eye level for most adults. As you can see, the rack is barely visible with the boats on it. Even so I will probably spray on some paint or varnish just to make it look a little better.

The ends are 1×4’s glued and screwed together. No fancy joints, just bare bones slapped together, basic construction. The rods are closet poles with a small dowel pin in them to keep the ends properly spaced apart.  Since the joints are a loose fit it’s wobbly. To keep it from flopping around I use polyester line as cross bracing across the back of the rack. Using a truckers hitch I can pull them tight and the suddenly the rack becomes very rigid!

The rope just has a loop on the end and just hooks over the protruding dowel.

Simple, effective and it cost me less than $30.

OK, I am though bragging now. 🙂



Inch by inch it comes together

Posted on by
1

Finally, I am able to walk with out holding onto a crutch, cane or whatever was in arms reach. Actually this ankle is healing faster than I expected but boredom has a way  of making time stand still.

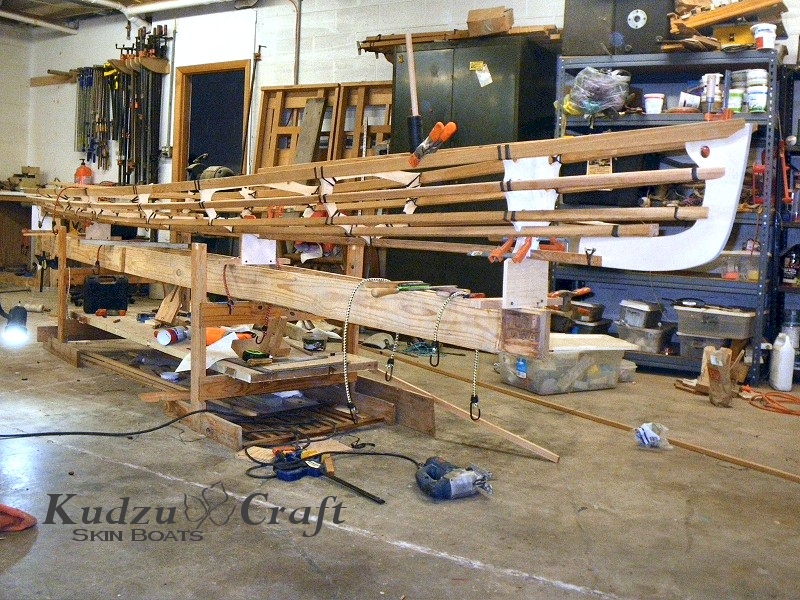

It is starting to look a lot like a boat. The hull is getting really close to being done. You can get an idea of its shape in this photo.

Bow is basically finished, just need to trim and lash the gunwales in place.

I worked on the transom today. I wouldn’t call it hard but I consider myself a decent woodworker. I suspect it would be challenging if you were not experienced. There was a lot of hand fitting to get everything right.

Put in on the boat, take it off and trim a little. Put in on the boat, take it off and trim a little. Repeat and then repeat it again.

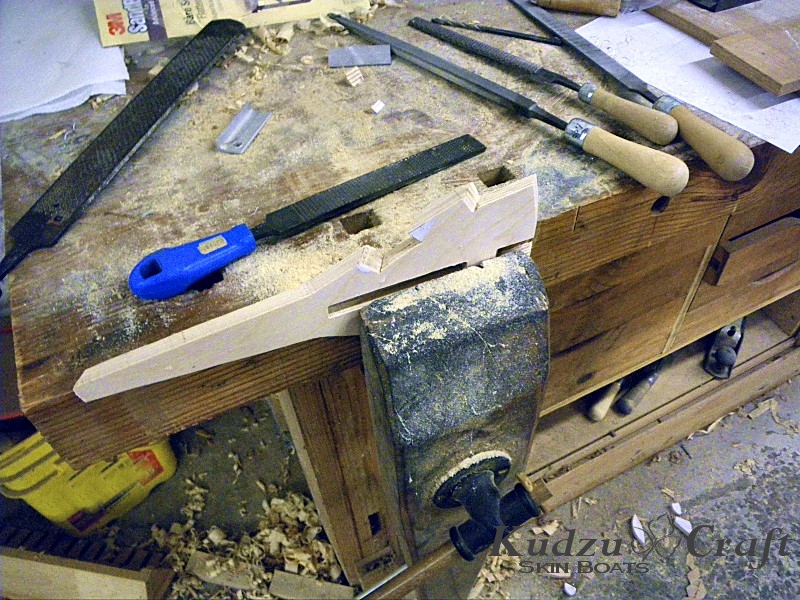

One my most used tools, my bench! Just so much easier to do jobs like this with the proper tool. The best tools for the job don’t always have to be plugged or of charged either.

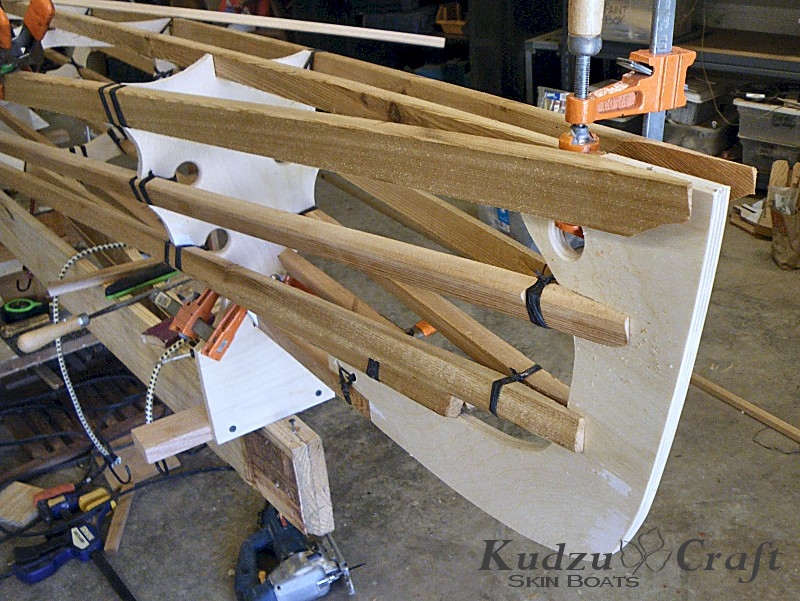

Here the transom is In place with the stringers trimmed. I really love the look of this transom but it is so small it’s not easy to work on.

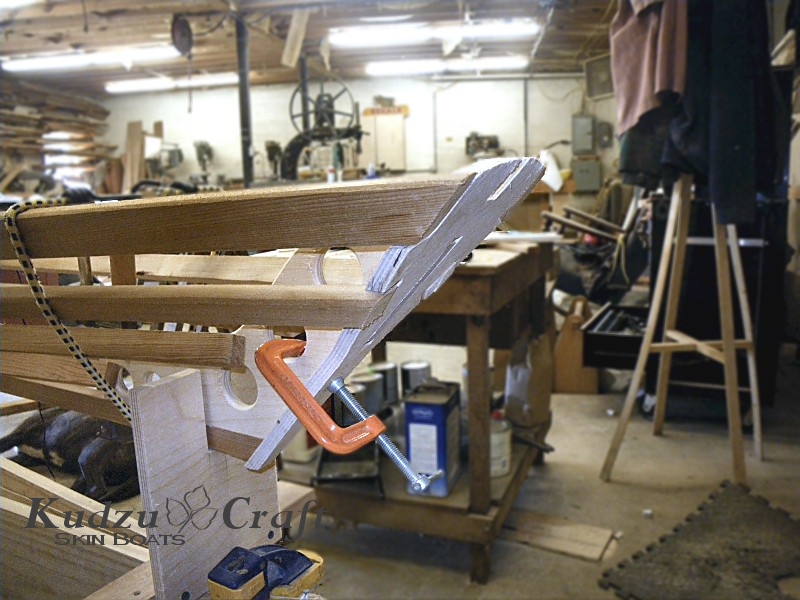

This will be the finished transom. It needs some trimming and detailing. It will be stained and varnished eventually.  I am considering laminating a nice wood veneer on it. Of course it is it so small and its will barely show due to the rake, it so I am not sure if it is worth the extra effort.
